G1-T12 Group Project: Investing 101 - Sub-modules: Charting and Technical Analysis, Correlation Analysis, Portfolio Analysis

Traditional financial data websites usually shy away from giving recommendations or advising users on investing decisions. While in depth studies are often conducted and used in academia or research, the outputs of these studies are often not accessible nor timely enough for the regular user. This means that these websites and their applications are limited in their use-cases. This can be due to issues arising from financial or legal liability if users act on the recommendations coming from these financial websites. As such we feel that this a gap between what is available publicly and user requirements.

1.2 Literature review, Objective/ Motivation

In the literature review conducted, it was found that there have been various attempts by users to provide tools for analysing stock price action. Existing charting or dashboarding tools often focus on only simple charting or technical indicator functionalities. Most open source/ free tools only offer the various functionalities in isolation, and users are unable to have a holistic view uniting technical analysis, portfolio analysis, and the other components to allow for complete decision making when making buying and selling decisions.

In the final product, the team will put together various sub-modules spanning across: Charting, Technical Analysis, Correlation Analysis, Clustering, Forecasting, Portfolio Analysis.

The motivation of building this sub-module is to focus on those mentioned in bold above.

This sub-module aims to provide rookie investors with tools to observe: a) The price action of various securities, b) Correlation of chosen stocks vs an underlying benchmark, and c) Portfolio performance over time.

1.3 Charting and Technical Analysis

In this module, users are able to visualize the chosen stock symbol using a candlestick chart. Open, High, Low, and Close prices for the selected period are shown on the chart.

In addition, users are able to choose between 2 sets of technical indicators: Simple moving averages and Bollinger Bands. Users are able to see the chosen symbol on 1 chart, and the accompanying benchmark index chosen on another chart. Both charts are created in an interactive manner using the plotly package.

Finally, multiple features based on candlestick patterns are created and available through a table. Such candlestick patterns inform users of certain bullish or bearish price action patterns observed. This provides a different perspectives to users incline towards technical analysis.

1.4 Correlation Analysis

1.5 Portfolio Analysis

2. Building the Visualization

2.1 Setting up the environment/ packages

First, we run this first line of code to clear the environment and remove existing R objects (if any)

This code chunk checks if required packages are installed. If they are not installed, the next line of code will install them. The following line is then use to import the library into the current working environment.

packages = c('tidyverse','tidyquant','dygraphs','plotly','ggplot2','timetk', 'rmarkdown','knitr')
for (p in packages) {
  if(!require(p,character.only = T)){
    install.packages(p)
  }
  library(p,character.only = T)
}

2.2 Charting and Technical Analysis

Users will be able to specify the start and end dates for the period under analysis. In addition, they are able to specify the periodicity (e.g. days, weeks, months, years).

from_date <- "2016-01-01"
to_date <- "2019-12-31"
period_type <- "days"
# "days"/ "weeks"/ "months"/ "years"

The application will use open source and live data obtained through the tidyquant package.

Users are able to select the individual stock symbol and benchmark index of their choice. The following code chunk utilizes the tidyquant package to extract stock data from Yahoo Finance. Depending on the period_type specified by users before, the periodicity can be changed.

ticker_selected <- "AAPL"

ticker_data_daily <- tq_get(ticker_selected,
               get = "stock.prices",
               from = from_date,
               to = to_date) %>%
            tq_transmute(select     = NULL,
                 mutate_fun = to.period,
                 period     = period_type)
paged_table(ticker_data_daily)

ABCDEFGHIJ0123456789

date <date>	open <dbl>	high <dbl>	low <dbl>	close <dbl>	volume <dbl>	adjusted <dbl>
2016-01-04	25.6525	26.3425	25.5000	26.3375	270597600	24.36454
2016-01-05	26.4375	26.4625	25.6025	25.6775	223164000	23.75398
2016-01-06	25.1400	25.5925	24.9675	25.1750	273829600	23.28912
2016-01-07	24.6700	25.0325	24.1075	24.1125	324377600	22.30621
2016-01-08	24.6375	24.7775	24.1900	24.2400	283192000	22.42415
2016-01-11	24.7425	24.7650	24.3350	24.6325	198957600	22.78726
2016-01-12	25.1375	25.1725	24.7100	24.9900	196616800	23.11798
2016-01-13	25.0800	25.2975	24.3250	24.3475	249758400	22.52360
2016-01-14	24.4900	25.1200	23.9350	24.8800	252680400	23.01622
2016-01-15	24.0500	24.4275	23.8400	24.2825	319335600	22.46347

# Benchmark Index
benchmark_selected <- "XLK"

benchmark_data_daily <- tq_get(benchmark_selected,
               get = "stock.prices",
               from = from_date,
               to = to_date) %>%
              tq_transmute(select     = NULL,
                 mutate_fun = to.period,
                 period     = period_type)
paged_table(benchmark_data_daily)

ABCDEFGHIJ0123456789

date <date>	open <dbl>	high <dbl>	low <dbl>	close <dbl>	volume <dbl>	adjusted <dbl>
2016-01-04	42.06	42.28	41.61	42.27	21638600	39.18877
2016-01-05	42.40	42.50	41.97	42.16	16067200	39.08679
2016-01-06	41.54	41.92	41.39	41.64	13858400	38.60469
2016-01-07	40.79	41.32	40.39	40.41	16840700	37.46435
2016-01-08	40.76	40.90	40.04	40.09	19233100	37.16769
2016-01-11	40.37	40.53	39.85	40.35	19135100	37.40873
2016-01-12	40.78	40.92	40.31	40.83	15841600	37.85373
2016-01-13	41.13	41.13	39.66	39.73	21962300	36.83392
2016-01-14	39.90	40.79	39.42	40.48	19795600	37.52925
2016-01-15	39.16	39.72	38.86	39.34	20177800	36.47234

The following code chunk creates a clean candlestick chart without indicators for the selected stock ticker and benchmark index. To use the dygraphs package, the input data has to be transformed from tibble to xts (extensible time series) format. We use the tk_xts() function from the timetk package for this.

For charting, we use the dygraph package. We specify dyCandlestick() to create a candlestick chart, and dyRangeSelector() to allow users to have the ability to toggle the range on the charts. In addition, specifying the group = “charting” argument allows for synchronization between charts sharing the same argument value. Changes made to either affects both charts interactively.

ticker_data_daily_xts <- tk_xts(
  ticker_data_daily %>%  select(date, open,high,low,close) )

benchmark_data_daily_xts <- tk_xts(
  benchmark_data_daily %>%  select(date, open,high,low,close) )

ticker_data_daily_xts %>%
  dygraph(main = "Candlestick Chart for AAPL", group = "charting") %>%
    dyCandlestick() %>%
    dyRangeSelector() %>%
    dyCrosshair(direction = "vertical")

benchmark_data_daily_xts %>%
  dygraph(main = "Candlestick Chart for Benchmark Index (XLK)", group = "charting") %>%
    dyCandlestick() %>%
    dyRangeSelector() %>%
    dyCrosshair(direction = "vertical")

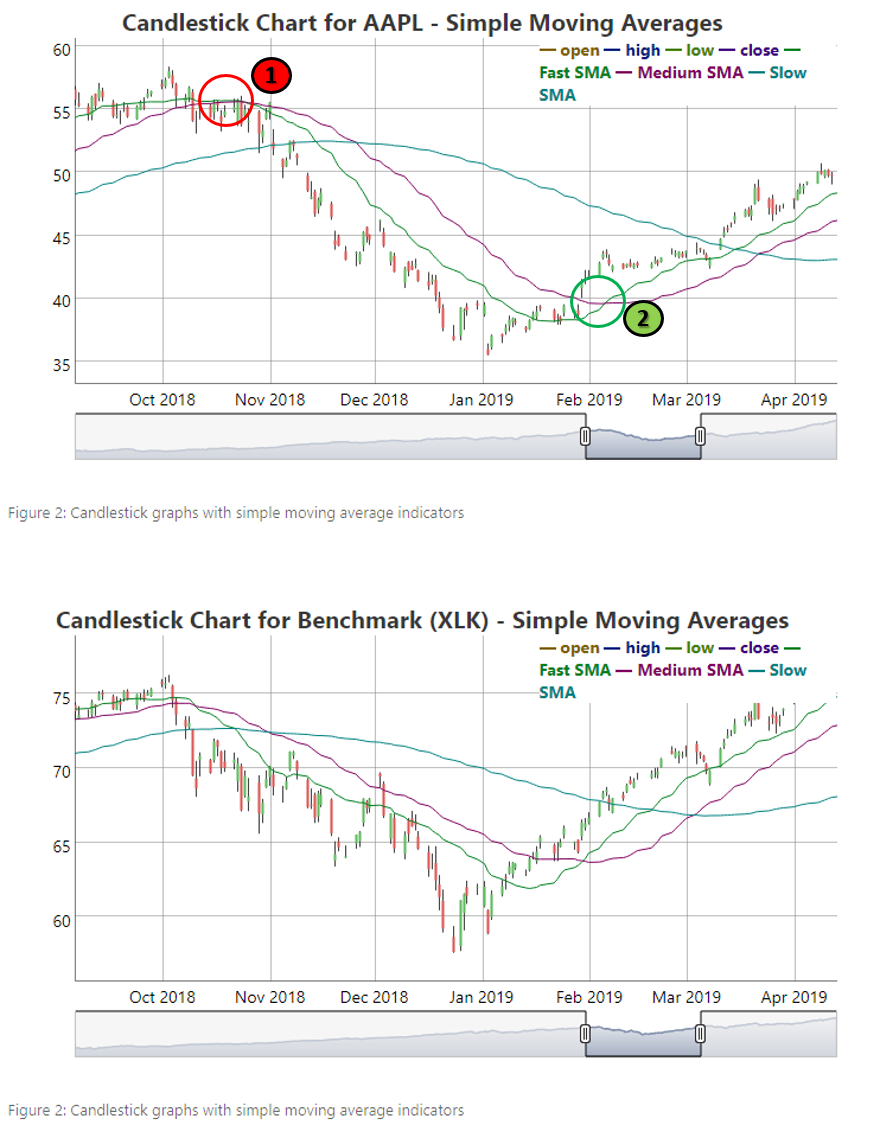

The following code chunk creates a similar candlestick chart, this time with the simple moving averages technical indicator.

# 20-day SMA
sma_fast <- SMA(ticker_data_daily_xts$close, n=20)
# 40-day SMA
sma_med <- SMA(ticker_data_daily_xts$close, n=40)
# 100-day SMA
sma_slow <- SMA(ticker_data_daily_xts$close, n=100)

ticker_data_daily_xts_sma <- data.frame(ticker_data_daily_xts, sma_fast, sma_med, sma_slow)

# head(ticker_data_daily_xts_sma)

chart_sma <- cbind(ticker_data_daily_xts_sma[,1:4], ticker_data_daily_xts_sma[,5], ticker_data_daily_xts_sma[,6], ticker_data_daily_xts_sma[,7])
colnames(chart_sma)[5]  <- "Fast SMA"
colnames(chart_sma)[6]  <- "Medium SMA"
colnames(chart_sma)[7]  <- "Slow SMA"

# 20-day SMA
sma_fast_bm <- SMA(benchmark_data_daily_xts$close, n=20)
# 40-day SMA
sma_med_bm <- SMA(benchmark_data_daily_xts$close, n=40)
# 100-day SMA
sma_slow_bm <- SMA(benchmark_data_daily_xts$close, n=100)

benchmark_data_daily_xts_sma <- data.frame(benchmark_data_daily_xts, sma_fast_bm, sma_med_bm, sma_slow_bm)

# head(benchmark_data_daily_xts_sma)

chart_sma_bm <- cbind(benchmark_data_daily_xts_sma[,1:4], benchmark_data_daily_xts_sma[,5], benchmark_data_daily_xts_sma[,6], benchmark_data_daily_xts_sma[,7])
colnames(chart_sma_bm)[5]  <- "Fast SMA"
colnames(chart_sma_bm)[6]  <- "Medium SMA"
colnames(chart_sma_bm)[7]  <- "Slow SMA"


chart_sma %>%
  dygraph(main = "Candlestick Chart for AAPL - Simple Moving Averages", group = "chart_sma") %>%
    dyCandlestick() %>%
    dyRangeSelector() %>%
    dyCrosshair(direction = "vertical")

chart_sma_bm %>%
  dygraph(main = "Candlestick Chart for Benchmark (XLK) - Simple Moving Averages", group = "chart_sma") %>%
    dyCandlestick() %>%
    dyRangeSelector() %>%
    dyCrosshair(direction = "vertical")

The following code chunk creates a similar candlestick chart, this time with the Bollinger Bands technical indicator.

bb20 <- BBands(ticker_data_daily_xts$close, sd=2.0, n=14, maType=EMA)

ticker_data_daily_xts_bb <- data.frame(ticker_data_daily_xts, bb20)

chart_bband <- cbind(ticker_data_daily_xts_bb[,1:4], ticker_data_daily_xts_bb[,5], ticker_data_daily_xts_bb[,6], ticker_data_daily_xts_bb[,7])
colnames(chart_bband)[5]  <- "Lower Band"
colnames(chart_bband)[6]  <- "Moving Average"
colnames(chart_bband)[7]  <- "Upper Band"

bb20_bm <- BBands(benchmark_data_daily_xts$close, sd=2.0, n=14, maType=EMA)


benchmark_data_daily_xts_bb <- data.frame(benchmark_data_daily_xts, bb20_bm)

chart_bband_bm <- cbind(benchmark_data_daily_xts_bb[,1:4], benchmark_data_daily_xts_bb[,5], benchmark_data_daily_xts_bb[,6], benchmark_data_daily_xts_bb[,7])
colnames(chart_bband_bm)[5]  <- "Lower Band"
colnames(chart_bband_bm)[6]  <- "Moving Average"
colnames(chart_bband_bm)[7]  <- "Upper Band"


chart_bband %>%
  dygraph(main = "Candlestick Chart for AAPL - Bollinger Bands", group = "chart_bband") %>%
    dyCandlestick() %>%
    dyRangeSelector() %>%
    dyCrosshair(direction = "vertical")

chart_bband_bm %>%
  dygraph(main = "Candlestick Chart for Benchmark (XLK) - Bollinger Bands", group = "chart_bband") %>%
    dyCandlestick() %>%
    dyRangeSelector() %>%
    dyCrosshair(direction = "vertical")

When analysing candlestick charts, there are various patterns observable to those interested in technical analysis. Such patterns may inform a user if there is a bullish or a bearish short term trend observed. We are able to utilize the “CandleStickPattern” package developed by Ko Chiu Yu to create various extra features representing such candlestick patterns.

The following code chunk creates features for multiple candlestick patterns covered in the package. In each column, a value of 1 represents the presence of such a pattern in that current candlestick, while a 0 indicates the absence of such a pattern.

In addition, the final column “bull_bear_strength” represents a summation of all available candlestick pattern indicators. It ranges from -2 (extremely bearish) to 2 (extremely bullish), with 0 being neutral/ indecisiveness in the price action.

It may be useful to introduce such features into the final Shiny app. These features provides a different perspective for users inclined towards technical analysis for stocks, apart from the usual indicators such as moving averages or bollinger bands.

# install_github("kochiuyu/CandleStickPattern")

library(CandleStickPattern)

price <- tk_xts(ticker_data_daily)

# INDECISIVE candlestick pattern
price$doji <- doji(price)

# BULLISH candlestick patterns
price$dragonfly_doji <- dragonfly.doji(price)
price$hammer <- hammer(price)
price$bullish_engulf <- bullish.engulf(price)
price$bullish_harami <- bullish.harami(price)
price$kick_up <- kick.up(price)
price$three_white_soldiers <- three.white.soldiers(price)
price$morning_star <- morning.star(price)
price$rising_three <- rising.three(price)

price$piercing_line <- piercing.line(price)
price$dark_cloud_cover <- dark.cloud.cover(price)

# BEARISH candlestick patterns
price$gravestone_doji <- gravestone.doji(price)
price$inverted_hammer <- inverted.hammer(price)
price$bearish_engulf <- bearish.engulf(price)
price$bearish_harami <- bearish.harami(price)
price$kick_down <- kick.down(price)
price$three_black_crows <- three.black.crows(price)
price$evening_star <- evening.star(price)
price$falling_three <- falling.three(price)

price$total_bull_score <- rowSums(price[, c("dragonfly_doji", "hammer", "bullish_engulf", "bullish_harami", "kick_up", "three_white_soldiers",
                                            "morning_star", "morning_star", "piercing_line", "dark_cloud_cover")])

price$total_bear_score <- rowSums(price[, c("gravestone_doji", "inverted_hammer", "bearish_engulf", "bearish_harami", "kick_down", "three_black_crows",
                                            "evening_star", "falling_three")]) * -1

price$total_bull_bear_score <- price$total_bull_score + price$total_bear_score

price[is.na(price)] <- 0

# Use recoding to create bull_bear_strength here from -2 (very bearish sentiment) to 2 (very bullish sentiment).
price$bull_bear_strength[price$doji == 1 | price$total_bull_bear_score == 0] <- 0
price$bull_bear_strength[price$total_bull_bear_score > 2] <- 2
price$bull_bear_strength[price$total_bull_bear_score <= 2 & price$total_bull_bear_score > 0] <- 1
price$bull_bear_strength[price$total_bull_bear_score < -2] <- -2
price$bull_bear_strength[price$total_bull_bear_score >= -2 & price$total_bull_bear_score < 0] <- -1

price <- data.frame(price)
paged_table(price)

ABCDEFGHIJ0123456789

	open <dbl>	high <dbl>	low <dbl>	close <dbl>	volume <dbl>	adjusted <dbl>	doji <dbl>
2016-01-04	25.6525	26.3425	25.5000	26.3375	270597600	24.36454	0
2016-01-05	26.4375	26.4625	25.6025	25.6775	223164000	23.75398	0
2016-01-06	25.1400	25.5925	24.9675	25.1750	273829600	23.28912	1
2016-01-07	24.6700	25.0325	24.1075	24.1125	324377600	22.30621	0
2016-01-08	24.6375	24.7775	24.1900	24.2400	283192000	22.42415	0
2016-01-11	24.7425	24.7650	24.3350	24.6325	198957600	22.78726	0
2016-01-12	25.1375	25.1725	24.7100	24.9900	196616800	23.11798	0
2016-01-13	25.0800	25.2975	24.3250	24.3475	249758400	22.52360	0
2016-01-14	24.4900	25.1200	23.9350	24.8800	252680400	23.01622	0
2016-01-15	24.0500	24.4275	23.8400	24.2825	319335600	22.46347	0

2.3 Correlation Analysis

Similar to the previous module, users will be able to specify the start and end dates for the period under analysis.

from_date <- "2016-01-01"
to_date <- "2019-12-31"

In the following code chunk, users select 4 stock symbols to form a portfolio, and an accompanying underlying benchmark index symbol. Data extracted is based on adjusted prices. For the purposes of measuring returns, a monthly periodicity is selected to avoid noise in the short term (e.g. daily).

port_corr_ticker_selection <- c("TSLA", "AAPL", "GOOG", "NFLX")
port_corr_benchmark_ticker <- "XLK"

PORT_mth <- port_corr_ticker_selection %>%
    tq_get(get  = "stock.prices",
           from = from_date,
           to   = to_date) %>%
    group_by(symbol) %>%
    tq_transmute(select     = adjusted,
                 mutate_fun = to.period,
                 period     = "months")
paged_table(PORT_mth)

In the following code chunk, users are able to visualize the monthly stock prices for the 4 chosen stocks in a facet wrap for convenience. The plots are made interactive using the plotly package.

symbol <chr>	date <date>	adjusted <dbl>
TSLA	2016-01-29	38.24000
TSLA	2016-02-29	38.38600
TSLA	2016-03-31	45.95400
TSLA	2016-04-29	48.15200
TSLA	2016-05-31	44.64600
TSLA	2016-06-30	42.45600
TSLA	2016-07-29	46.95800
TSLA	2016-08-31	42.40200
TSLA	2016-09-30	40.80600
TSLA	2016-10-31	39.54600

port_mth_plotly <- PORT_mth %>%
        ggplot(aes(x = date, y = adjusted, color = symbol)) +
        geom_line(size = 1) +
        labs(title = "Monthly Stock Prices",
             x = "", y = "", color = "") +
        facet_wrap(~ symbol, ncol = 2, scales = "free_y") +
        scale_y_continuous(labels = scales::dollar) +
        theme_tq() +
        scale_color_tq()
port_mth_plotly <- ggplotly(port_mth_plotly) %>%
        layout(yaxis = list(title = list(text = "Adjusted Prices", standoff = 20L)))
port_mth_plotly

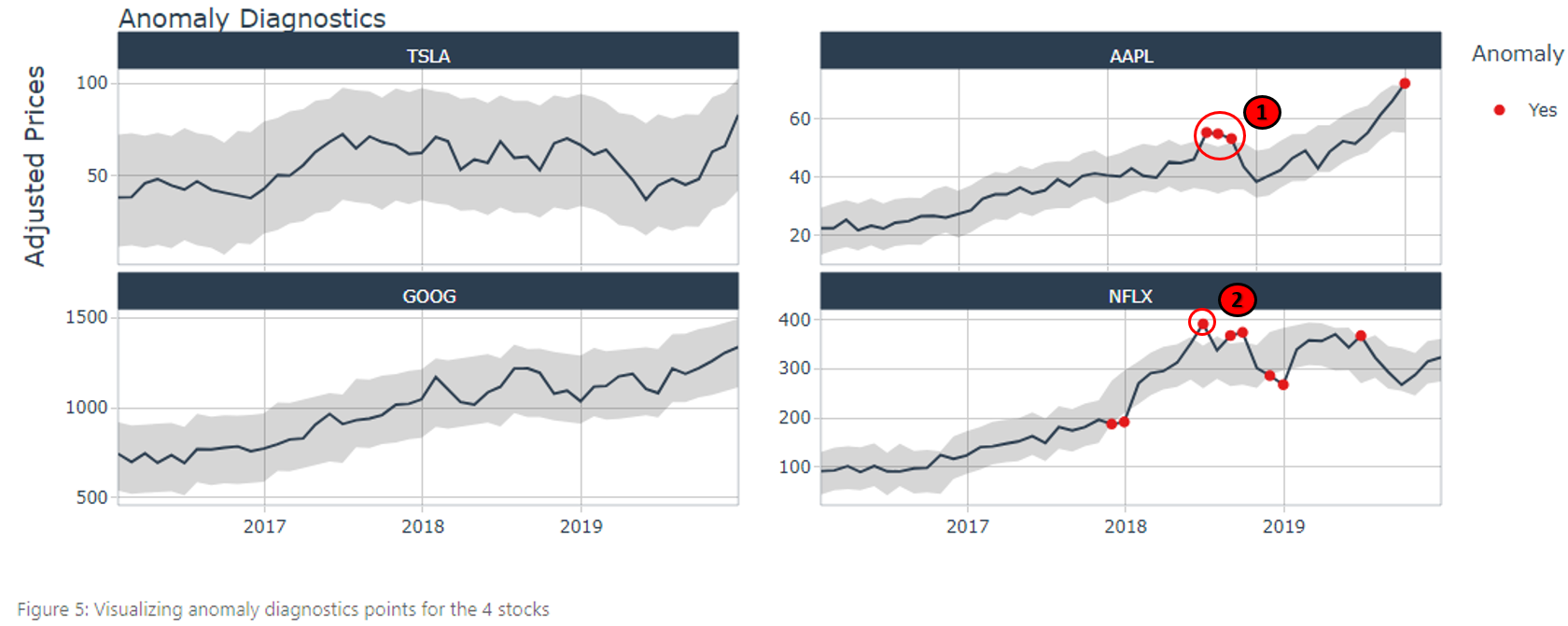

In the following code chunk, users are able to visualize anomalous points in the monthly stock prices for the 4 chosen stocks in a facet wrap for convenience. The plots are made interactive using the plotly package. While stocks in general may exhibit a volatile nature, such anomalous points in time may provide some indication of a turning point where stocks have been overbought or oversold in the short term.

PORT_mth %>%
    group_by(symbol) %>%
    plot_anomaly_diagnostics(date, adjusted, .facet_ncol = 2) %>%
    layout(yaxis = list(title = list(text = "Adjusted Prices", standoff = 20L)))

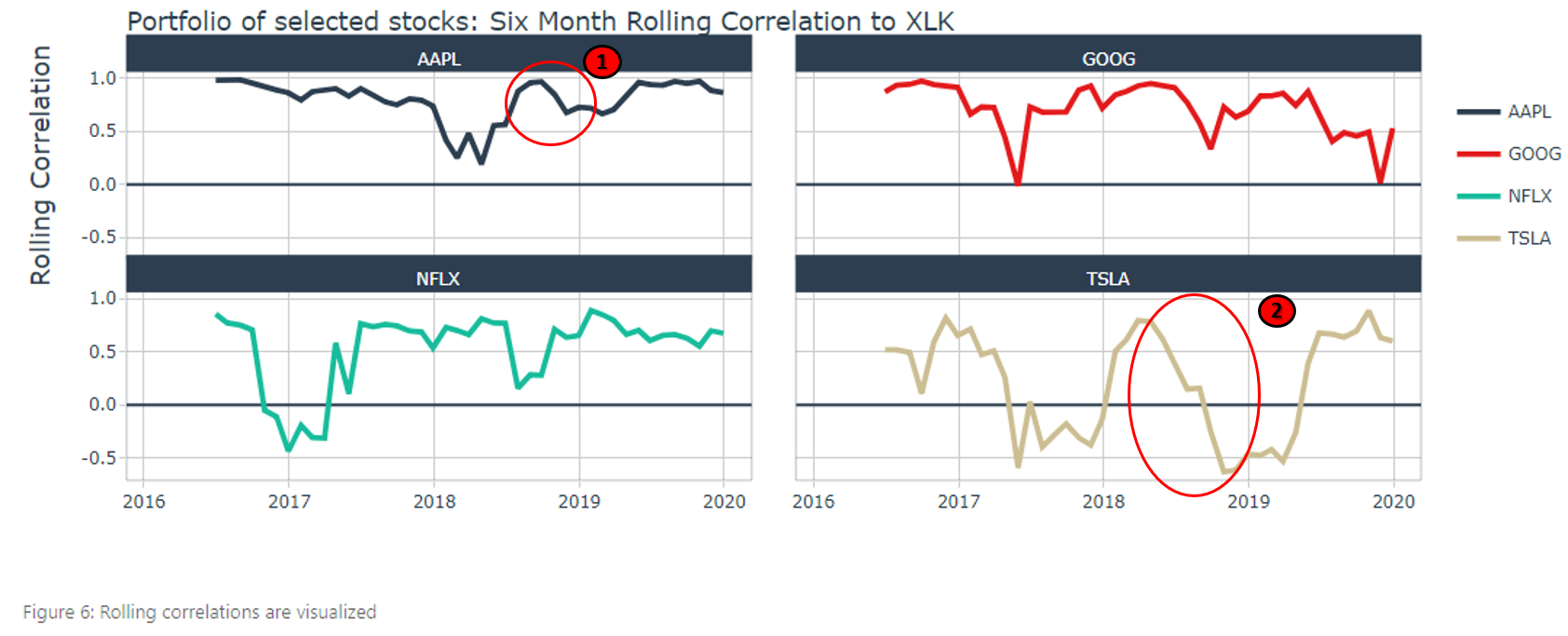

In the following code chunk, the monthly returns are calculated for both the selected portfolio stocks and the accompanying benchmark index.

PORT_returns_monthly <- port_corr_ticker_selection %>%
    tq_get(get  = "stock.prices",
           from = from_date,
           to   = to_date) %>%
    group_by(symbol) %>%
    tq_transmute(select     = adjusted,
                 mutate_fun = periodReturn,
                 period     = "monthly")

paged_table(PORT_returns_monthly)

symbol <chr>	date <date>	monthly.returns <dbl>
TSLA	2016-01-29	-1.441743e-01
TSLA	2016-02-29	3.817991e-03
TSLA	2016-03-31	1.971551e-01
TSLA	2016-04-29	4.783046e-02
TSLA	2016-05-31	-7.281110e-02
TSLA	2016-06-30	-4.905252e-02
TSLA	2016-07-29	1.060392e-01
TSLA	2016-08-31	-9.702287e-02
TSLA	2016-09-30	-3.763973e-02
TSLA	2016-10-31	-3.087779e-02

# Baseline Returns
baseline_returns_monthly <- port_corr_benchmark_ticker %>%
    tq_get(get  = "stock.prices",
           from = from_date,
           to   = to_date) %>%
    tq_transmute(select     = adjusted,
                 mutate_fun = periodReturn,
                 period     = "monthly")
paged_table(baseline_returns_monthly)

In the following code chunk, a left join is performed to combine the monthly returns of the portfolio and the benchmark index returns.

returns_joined <- left_join(PORT_returns_monthly,
                            baseline_returns_monthly,
                            by = "date")
paged_table(returns_joined)

ABCDEFGHIJ0123456789

symbol <chr>	date <date>	monthly.returns.x <dbl>	monthly.returns.y <dbl>
TSLA	2016-01-29	-1.441743e-01	-0.024367210
TSLA	2016-02-29	3.817991e-03	-0.006547000
TSLA	2016-03-31	1.971551e-01	0.088217257
TSLA	2016-04-29	4.783046e-02	-0.050270629
TSLA	2016-05-31	-7.281110e-02	0.048895911
TSLA	2016-06-30	-4.905252e-02	-0.013777643
TSLA	2016-07-29	1.060392e-01	0.071016773
TSLA	2016-08-31	-9.702287e-02	0.011625270
TSLA	2016-09-30	-3.763973e-02	0.021018154
TSLA	2016-10-31	-3.087779e-02	-0.007534648

In the following code chunk, the runCor function is used to evaluate the rolling correlations using the xy pattern.

PORT_rolling_corr <- returns_joined %>%
    tq_transmute_xy(x          = monthly.returns.x,
                    y          = monthly.returns.y,
                    mutate_fun = runCor,
                    n          = 6,
                    col_rename = "rolling.corr.6")
paged_table(PORT_rolling_corr)

In the following code chunk, the rolling correlations previously calculated are now visualized using plotly.

symbol <chr>	date <date>	rolling.corr.6 <dbl>
TSLA	2016-01-29	NA
TSLA	2016-02-29	NA
TSLA	2016-03-31	NA
TSLA	2016-04-29	NA
TSLA	2016-05-31	NA
TSLA	2016-06-30	0.51773750
TSLA	2016-07-29	0.51855294
TSLA	2016-08-31	0.49322520
TSLA	2016-09-30	0.10869729
TSLA	2016-10-31	0.59390653

port_rolling_corr_plotly <- PORT_rolling_corr %>%
        ggplot(aes(x = date, y = rolling.corr.6, color = symbol)) +
        geom_hline(yintercept = 0, color = palette_light()[[1]]) +
        geom_line(size = 1) +
        labs(title = "Portfolio of selected stocks: Six Month Rolling Correlation to XLK",
             x = "", y = "", color = "") +
        facet_wrap(~ symbol, ncol = 2) +
        theme_tq() +
        scale_color_tq()

port_rolling_corr_plotly <- ggplotly(port_rolling_corr_plotly) %>%
        layout(yaxis = list(title = list(text = "Rolling Correlation", standoff = 20L)))
port_rolling_corr_plotly

2.4 Portfolio Analysis

Similar to the previous module, users will be able to specify the start and end dates for the period under analysis. In addition, they specify which the stock symbols for 4 stocks + 1 benchmark index. These stocks symbols will be used to form the portfolio for further analysis.

from_date <- "2016-01-01"
to_date <- "2019-12-31"
portfolio_ticker_selection <- c("AAPL", "GOOG", "NFLX", "TSLA", "XLK")
benchmark_ticker_selection <- "XLK"
initial_investment_capital <- 10000

In the following code chunk, we calculate the monthly returns for the selected stock symbols.

stock_returns_monthly <- portfolio_ticker_selection %>%
    tq_get(get  = "stock.prices",
           from = from_date,
           to   = to_date) %>%
    group_by(symbol) %>%
    tq_transmute(select     = adjusted,
                 mutate_fun = periodReturn,
                 period     = "monthly",
                 col_rename = "Ra")
paged_table(stock_returns_monthly)

In the following code chunk, we specify the weights of portfolio 1, and visualize the monthly returns using plotly. We create a new field called gain_loss, where gains are visualized as green, while losses are visualized as red.

We further add a smoothing line (in blue) as an additional layer onto our graph. This allows us to quickly see a general trend of the portfolio across the period.

symbol <chr>	date <date>	Ra <dbl>
AAPL	2016-01-29	-7.603244e-02
AAPL	2016-02-29	-1.287489e-03
AAPL	2016-03-31	1.272105e-01
AAPL	2016-04-29	-1.399210e-01
AAPL	2016-05-31	7.177294e-02
AAPL	2016-06-30	-4.265968e-02
AAPL	2016-07-29	9.006250e-02
AAPL	2016-08-31	2.365214e-02
AAPL	2016-09-30	6.550419e-02
AAPL	2016-10-31	4.334252e-03

wts_1 <- c(0.25, 0.25, 0.25, 0.25, 0.00)
portfolio_returns_monthly_1 <- stock_returns_monthly %>%
    tq_portfolio(assets_col  = symbol,
                 returns_col = Ra,
                 weights     = wts_1,
                 col_rename  = "Ra") %>%
    mutate(gain_loss = if_else(Ra > 0, "gain", "loss"))

paged_table(portfolio_returns_monthly_1)

date <date>	Ra <dbl>	gain_loss <chr>
2016-01-29	-0.095874431	loss
2016-02-29	-0.012317614	loss
2016-03-31	0.120542165	gain
2016-04-29	-0.069284592	loss
2016-05-31	0.042241522	gain
2016-06-30	-0.064279841	loss
2016-07-29	0.078368799	gain
2016-08-31	-0.006192392	loss
2016-09-30	0.014173001	gain
2016-10-31	0.057149786	gain

port_returns_1_plotly <- portfolio_returns_monthly_1 %>%
    ggplot(aes(x = date, y = Ra)) +
    geom_bar(stat = "identity", aes(fill = gain_loss)) +
    scale_fill_manual("legend", values = c("gain" = "green4", "loss" = "red")) +
    labs(title = "Portfolio Returns 1",
         x = "", y = "Monthly Returns") +
    geom_smooth(method = "lm") +
    theme_tq() +
    scale_color_tq() +
    scale_y_continuous(labels = scales::percent)

port_returns_1_plotly <- ggplotly(port_returns_1_plotly)
port_returns_1_plotly

Similarly, we specify weights for the 2nd portfolio and do create a visualization in the same style.

Similarly, we specify weights for the 3rd portfolio and do create a visualization in the same style.

In the following code chunk, we create a weights table. Here, we create 3 sets of weights for the selected 5 symbols (4 stocks + 1 benchmark index).

When designing the shiny app, users will be able to set the various weights for the 3 different portfolios.

weights <- c(
    0.25, 0.25, 0.25, 0.25, 0.00,
    0.40, 0.30, 0.20, 0.10, 0.00,
    0.20, 0.20, 0.20, 0.20, 0.20
)

weights_table <-  tibble(portfolio_ticker_selection) %>%
    tq_repeat_df(n = 3) %>%
    bind_cols(tibble(weights)) %>%
    group_by(portfolio)
paged_table(weights_table)

In the following code chunk, we scale the single portfolio to 3, for subsequent multiple portfolio comparison analysis.

portfolio <int>	portfolio_ticker_selection <chr>	weights <dbl>
1	AAPL	0.25
1	GOOG	0.25
1	NFLX	0.25
1	TSLA	0.25
1	XLK	0.00
2	AAPL	0.40
2	GOOG	0.30
2	NFLX	0.20
2	TSLA	0.10
2	XLK	0.00

stock_returns_monthly_multi <- stock_returns_monthly %>%
    tq_repeat_df(n = 3)
paged_table(stock_returns_monthly_multi)

In the following code chunk, we apply the weights table to the previously calculated monthly returns of the 3 portfolios. In addition, the initial investment capital is used along with the monthly returns to create the portfolio equity position every month.

portfolio <int>	symbol <chr>	date <date>	Ra <dbl>
1	AAPL	2016-01-29	-7.603244e-02
1	AAPL	2016-02-29	-1.287489e-03
1	AAPL	2016-03-31	1.272105e-01
1	AAPL	2016-04-29	-1.399210e-01
1	AAPL	2016-05-31	7.177294e-02
1	AAPL	2016-06-30	-4.265968e-02
1	AAPL	2016-07-29	9.006250e-02
1	AAPL	2016-08-31	2.365214e-02
1	AAPL	2016-09-30	6.550419e-02
1	AAPL	2016-10-31	4.334252e-03

portfolio_growth_monthly_multi <- stock_returns_monthly_multi %>%
    tq_portfolio(assets_col   = symbol,
                 returns_col  = Ra,
                 weights      = weights_table,
                 col_rename   = "investment.growth",
                 wealth.index = TRUE) %>%
    mutate(investment.growth = investment.growth * initial_investment_capital)
paged_table(portfolio_growth_monthly_multi)

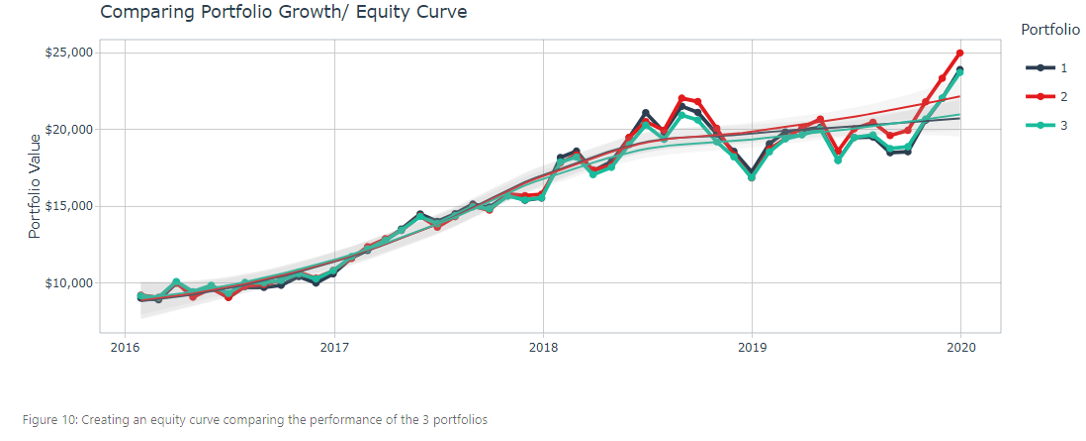

In the following code chunk, we create an equity curve comparing the performance of the 3 portfolios created.

portfolio <int>	date <date>	investment.growth <dbl>
1	2016-01-29	9041.256
1	2016-02-29	8929.889
1	2016-03-31	10006.317
1	2016-04-29	9313.034
1	2016-05-31	9706.430
1	2016-06-30	9082.502
1	2016-07-29	9794.287
1	2016-08-31	9733.637
1	2016-09-30	9871.592
1	2016-10-31	10435.751

portfolio_plotly <- portfolio_growth_monthly_multi %>%
    ggplot(aes(x = date, y = investment.growth, color = factor(portfolio))) +
    geom_line(size = 1) + geom_point() +
    labs(title = "Comparing Portfolio Growth/ Equity Curve",
         x = "", y = "Portfolio Value",
         color = "Portfolio") +
    geom_smooth(method = "loess", alpha = 0.1, size = 0.5) +
    theme_tq() +
    scale_color_tq() +
    scale_y_continuous(labels = scales::dollar)
portfolio_plotly <- ggplotly(portfolio_plotly)
portfolio_plotly

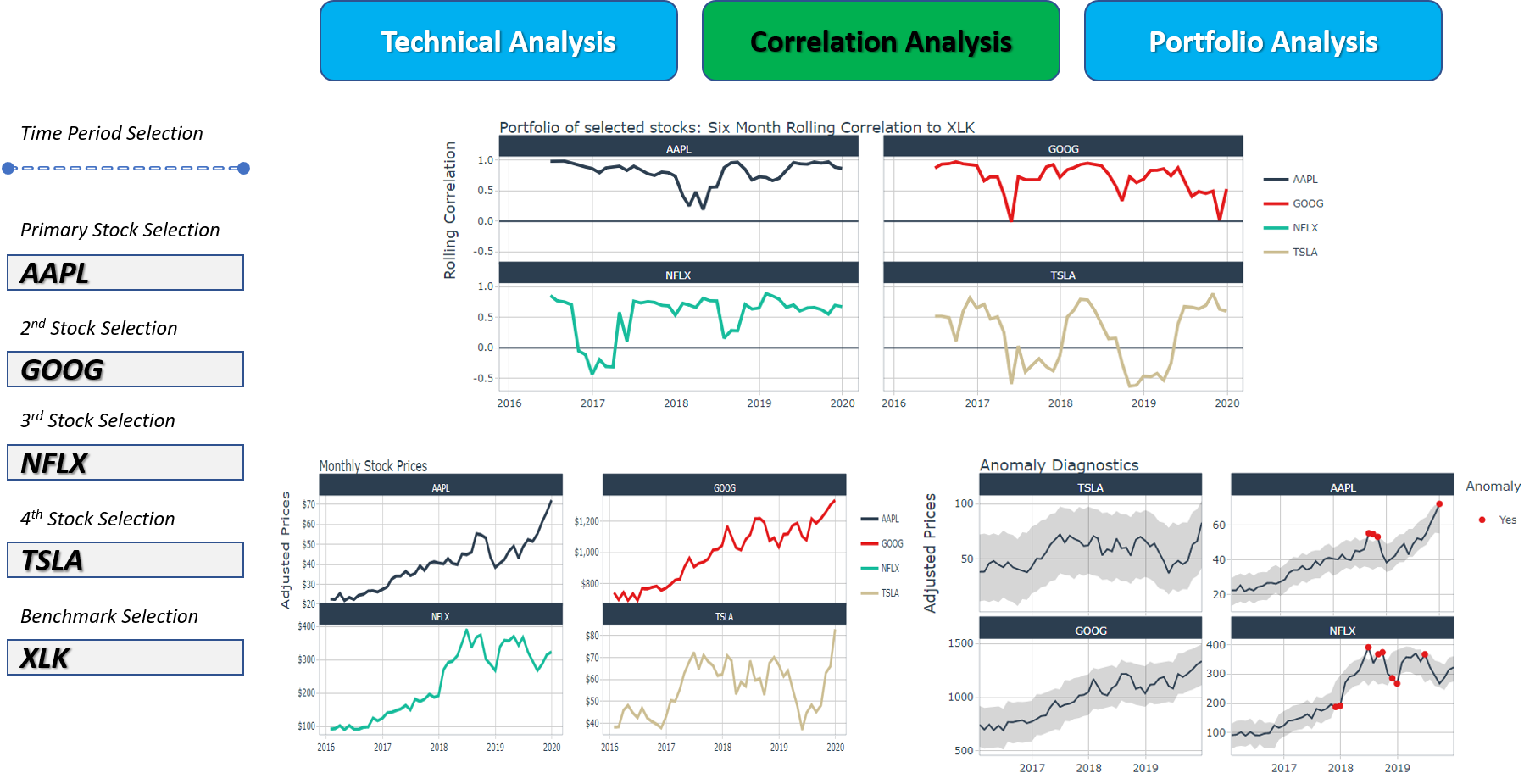

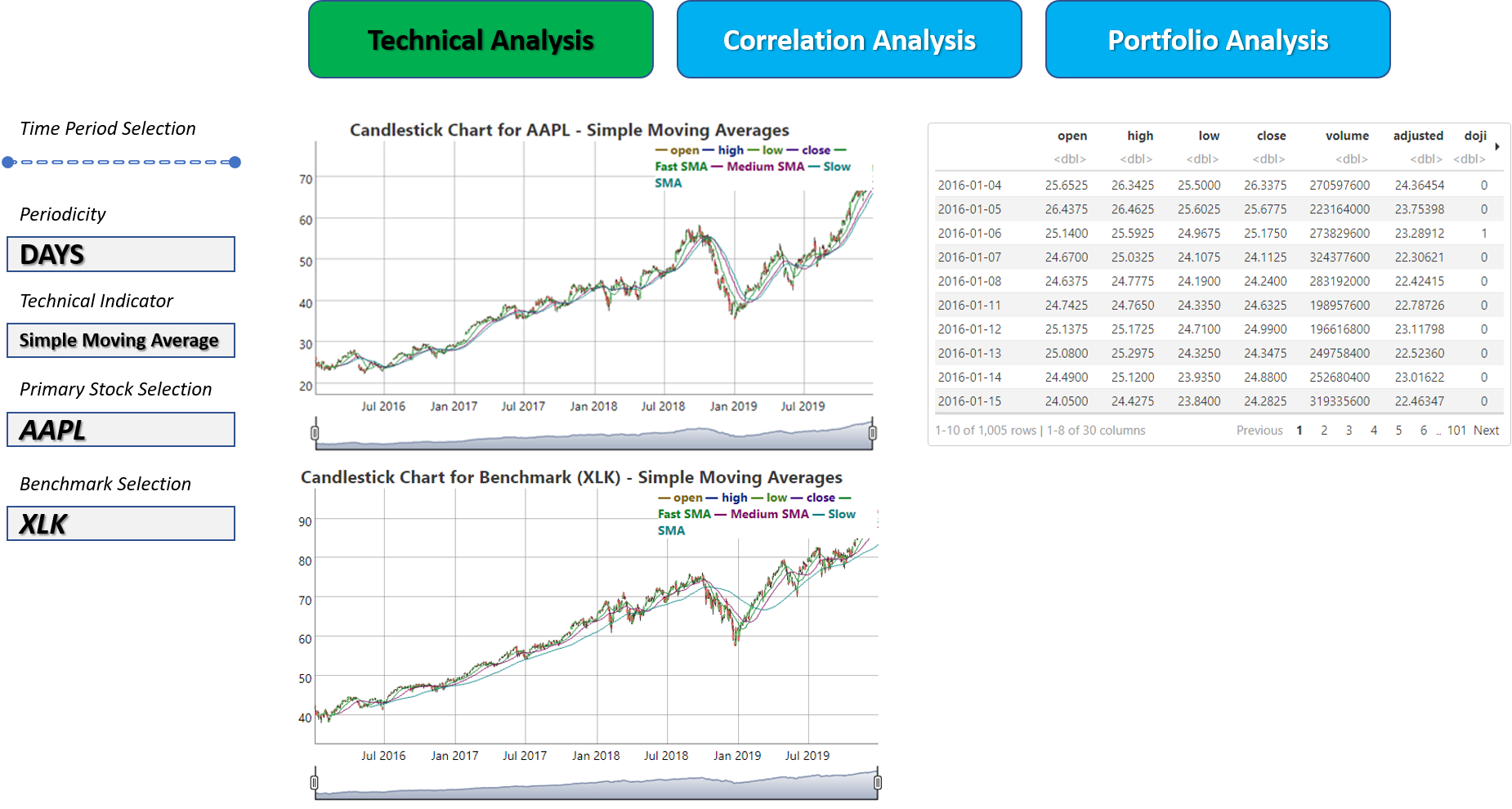

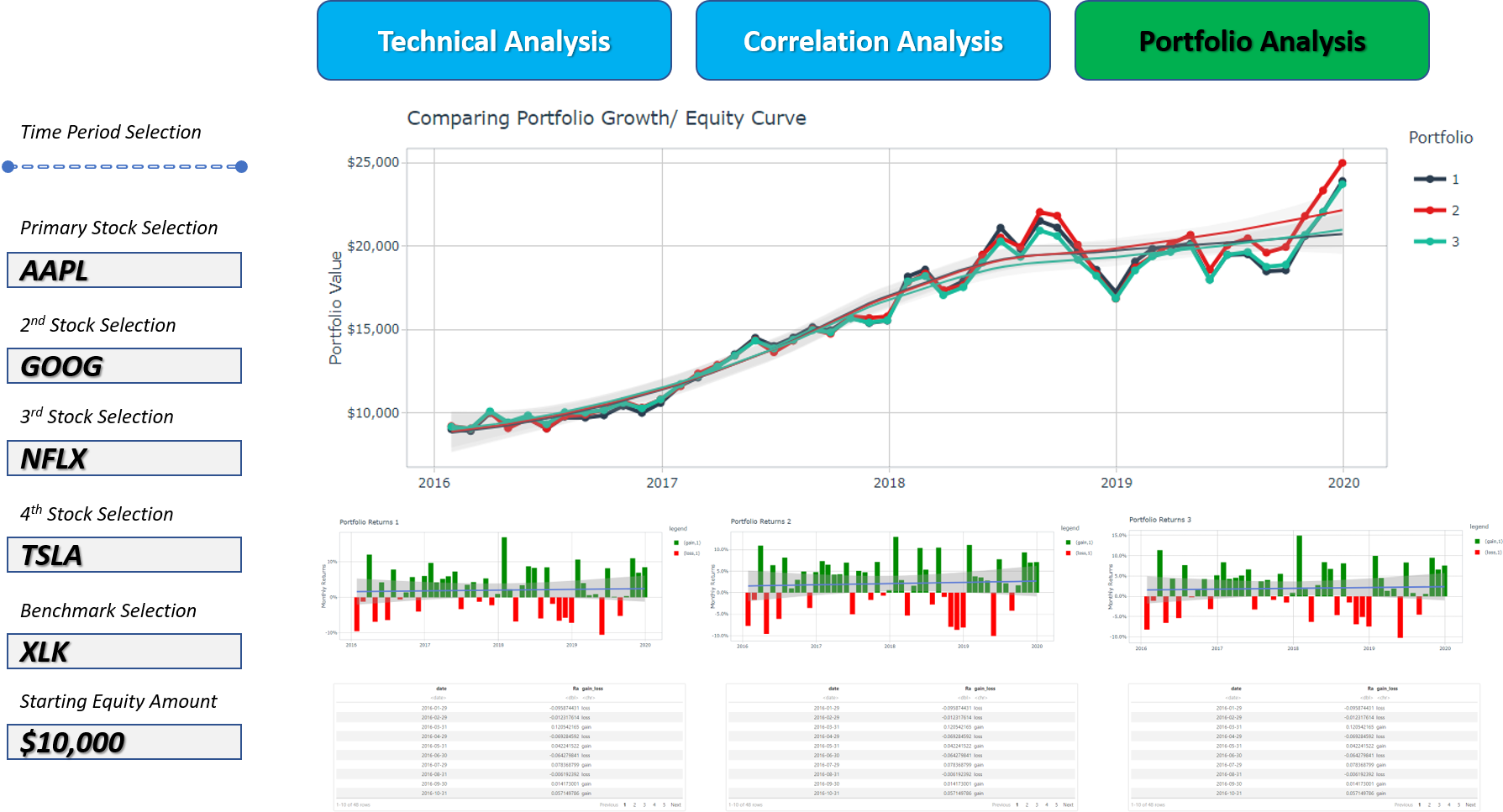

3. Proposed Visualization

4. Insights

The various functionalities designed allow for a user to explore, choose, and optimize for a portfolio of stocks suited to their preferences.

Simple Moving Averages are a common but effective technical indicator used by many people. These moving averages essentially defer from each other based on the number of periods of lookback.

A short term moving average is typically interpreted as short term price trends largely influenced by activities of traders.

A longer term moving average is typically interpreted as a major change in trend that is influenced also by investors with a longer time horizon.

In general, when the moving average lines are sloping up, it denotes a bullish trend with prices rising. The converse, with moving average lines sloping down denotes a bearish trend.

In addition, the combination of multiple Simple Moving Averages provides users with another way to identify specify entry or exit points.

Looking at the AAPL candlestick chart for period (1), we see that in mid-Oct 2018 before the large market selldown, the short term moving average line (fast line) had crossed below the medium term moving average line. This indicates a potential bearish trend. Prices continued to fall all the way to a low in Jan 2019.

On the other hand, looking at the AAPL candlestick chart for period (2), we see that as prices started to pick up, the resumption of a bullish trend was picked up by the fast moving average crossing back above the medium moving average. Prices continued to rise further after that period.

The inclusion of Simple Moving Averages as a technical indicator on candlestick charts can be a useful addition to users performing technical analysis on stocks.

The inclusion of a chart visualizing anomaly diagnostics available from the timetk package easily provides visual cues to users on unusual points (anomalies) on time series data. Such anomalous points may be indicative of a potential turning point in the trend of the stock price.

As shown in both (1) and (2) on the chart, such points may inform a user that the bullish trend has come to an end, and a reversal is taking place.

Users may take note of such an indicator (along with considering many other factors) in assessing whether to exit a position, continue to do nothing and observe, or to even short-sell the stock.

Correlation analysis between chosen stocks and an underlying index may help to guide a user’s choices in selecting either a concentrated or diversified portfolio (depending on their investing preference).

In this example, when looking at the broader market pullback in end of 2018, we see in (1), that AAPL stock was still quite highly correlated with the technology sector ETF (XLK). This is to be expected as AAPL is considered as a technology stock.

On the other hand, during the same period seen in (2), we see that Tesla had a negative correlation with XLK. This indicates that prices move in different directions from the underlying benchmark index.

Investors can utilize such insights to choose and update their portfolio of stocks to either be largely concentrated in that sector (look for stocks that are consistently highly correlated with the sector), or to be more diversified (look for stocks that consistently have low correlation with the sector).

Portfolio analysis allows users to compare the performance of various portfolios (constructed using different weights) across time.

Users are able to specify a starting equity amount, and visualize the equity curve over time.

Users can tweak the weightage of the various stocks in the portfolio to achieve an equity curve that exhibits strong growth, but yet tolerable periods of drawdown (periods when the portfolio performance exhibits a downwards trend from most recent highs).

Investing 101 - Sub-modules: Charting and Technical Analysis, Correlation Analysis, Portfolio Analysis

Author

Affiliation

Published

DOI

1. Overview

1.1 Background

1.2 Literature review, Objective/ Motivation

1.3 Charting and Technical Analysis

1.4 Correlation Analysis

1.5 Portfolio Analysis

2. Building the Visualization

2.1 Setting up the environment/ packages

2.2 Charting and Technical Analysis

2.3 Correlation Analysis

2.4 Portfolio Analysis

3. Proposed Visualization

4. Insights

5. References

Footnotes
